Product Information

DAQ9000 is a comprehensive and highly configurable multi-function, multi-protocol, data acquisition / recorder system and data concentrator for use as a flight data acquisition unit (FDAU) or instrumentation data acquisition system.

A wide range of characterisation modules can be installed to provide the functionality desired, for digital and analogue input or output. Inputs are outputs are highly configurable by customers to allow the use of common hardware across a range of applications.

The DAQ9000 primarily consists of a chassis and power input / system controller module with recording, GPS and a real time clock to provide time stamping of data. Additional modules may then be selected to provide a range of functions to suit the intended application / installation.

DAQ9000 modules from the DAQ family provide functionality such as ARINC-429, ARINC-573/717, RS-232, RS-422, MIL-STD-1553B, CAN, IRIG-106-13, Analogue I/O, Frequency I/O, Engine Tacho, Potentiometer Input, Strain Gauge Input, Synchro and Discrete I/O.

DAQ9000 also provides dual Ethernet and USB interfaces for programming, data download, real-time display and to allow multiple DAQ9000 chassis to be interconnected as part of a larger, distributed, data acquisition system.

Product Features

• Multi Function Data Acquisition System
• Data protocol and format conversion
• Flight Data Acquisition Unit
• Data Concentrator
• Flight Test Instrumentation
• Interchangeable modular functionality
• Input/Output and Combined I/O Modules
• Integrated GPS, includes UTC time stamping of data
• Interfaces to Nginuity Inertial and Air Data Sensors
• All data processed internally in engineering units
• Slot Zero Master System Controller
• Flexible user configuration and parameter mapping
• Up to 32GB Storage for Recording
• Support for IRIG-106-13 TMATS file format
• 1GHz Parallel ARM Cortex DSP + FPU Processing

Software

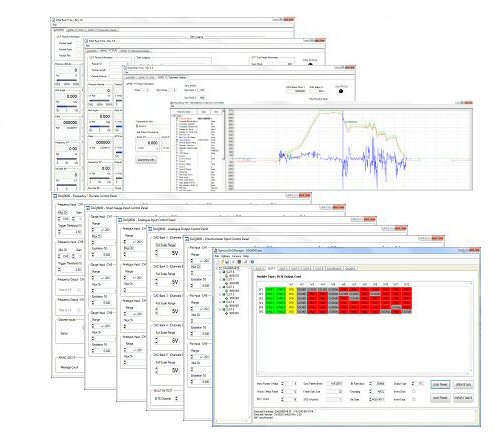

The DAQ9000 product is supported by our DAQManager software suite. The DAQManager software allows each card in the DAQ9000 chassis to be configured / calibrated / mapped to the target sensor or data bus parameter, while simultaneously providing a real time display of the calibrated parameter. This provides a versatile and rapid method of sensor installation / calibration.

DAQManager also provides a sensor calibration wizard, to simply the calibration process. For a simple linear voltage output sensor, this process can take only a few seconds.

For serial output cards, such as IRIG-106-13, MIL-STD-1553B, ARINC-429 and ARINC-717, a frame builder utility is provided to provide control of parameter output order / repetition rates etc.

Graphical Presentation

A graphical presentation is included which utilises a flight instrument display format. This enables labels such as Altitude, Airspeed, Rate of climb, Heading, Attitule etc, to be displayed as shown.

UDP Real Time Display

In addition to DAQManager, the DAQ9000 is also supported by our DAQ-RT real time parameter display software. The standard Ethernet interface in the DAQ9000 unit is provided for maintenance and set-up purposes. A second Ethernet interface may be included for real time data output via UDP. DAQ9000 can output the full parameter list live to a laptop/PC for display as tabular/graphical data or as virtual instruments using our DAQ-RT real time display software.

Post Flight Replay and Data Analysis

The DAQ9000 is also supported by our DAQ-Replay, post flight data visualisation and analysis tool. DAQReplay provides a data download and decode facility for the DAQ9000, allowing data to be plotted and analysed post flight. DAQReplay also provides an export facility, such that data can be converted and exported in CSV format for porting into 3rd party applications.

DAQ9000 Chassis Options Available

• DAQ9000-M3X - Small footprint 3 slot chassis [PDF Product Datasheet]
• DAQ9000-M5X - 5 slot chassis with IMU & Air Data Module [PDF Product Datasheet]
• DAQ9000-M6X - 6 slot chassis [PDF Product Datasheet]

The DAQ9000 is available in flight test international orange or black fine textured powder finish as well as standard and extended temperature range options.

DAQ9000 Modules Available

• 9000-C01 - Slot zero controller module with Ethernet & USB
• 9000-001 - 12 channel strain gauge module
• 9000-002 - 12 channel potentiometer module
• 9000-003 - 16 channel analogue input module with thermocouple option
• 9000-004 - 8 channel frequency I/O module with discrete I/O and ARINC-429
• 9000-005 - 40 channel analogue output module
• 9000-006 - Multi-channel avionics interface module with ARINC-429 and ARINC-717
• 9000-007 - 8 channel analogue input module with thermocouple option
• 9000-008 - 4 channel frequency I/O module with HI-Z discrete I/O and ARINC-429
• 9000-009 - Multi-channel serial interface module with PCM
• 9000-010 - Multi-function interface module with opto-isolated RS-422, ARINC-429 and discrete
• 9000-011 - 8 channel ARINC-429 interface module with MIL-STD-1553B (BC / BM / RT)
• 9000-012 - 3 channel ARINC-407 Synchro interface module

Typical Applications

Related Products

• DAQAHRS - GPS / Inertial Sensor Module
• DAQPOWER - High power, dual output power supply
• DAQAIR - Air Data Module for flight test instrumentation
• DAQHUB - Layer 2 Ethernet switch for DAQ interconnection
• DAQMINI - Mini serial data recorder with on-board AHRS
• DAQFDR - Crash survivable external recording module
